BRT320

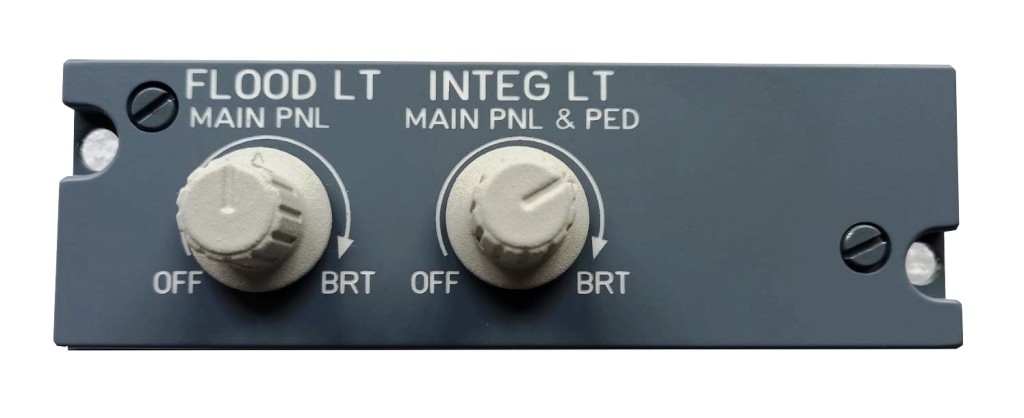

Full scale replica of Airbus CP and FO FLOOD panel for A318,A319,A320,A321,A330,A340 cockpits


• Plug&Play module
• Warm white backlight
• Realistic design with real size dimensions
• High quality customized backlighted pushbuttons
• Directly plug CPflight daisy chain (CPflight FCU required)
• All functions supported ( depends by the used software )

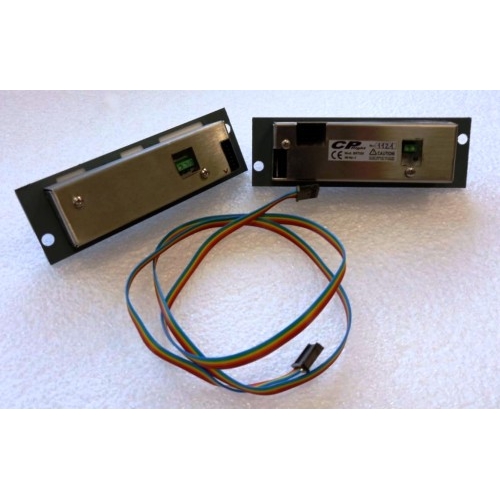

• 4 pole connection cable (50 cm-provided)
• High accuracy 10 bit resolution potentiometer for Flood and Integrated light regulation

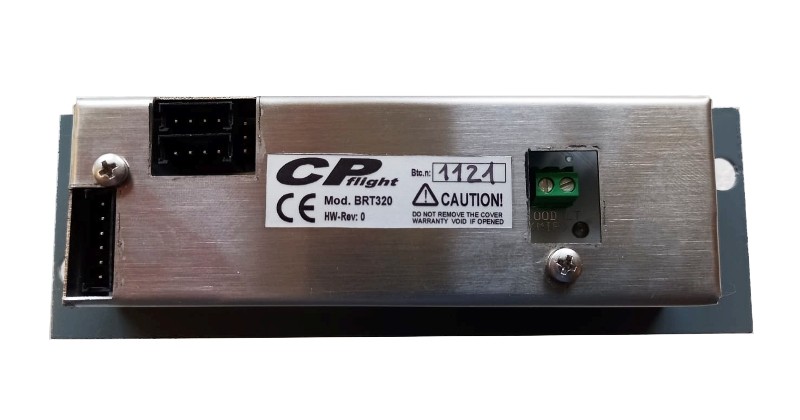

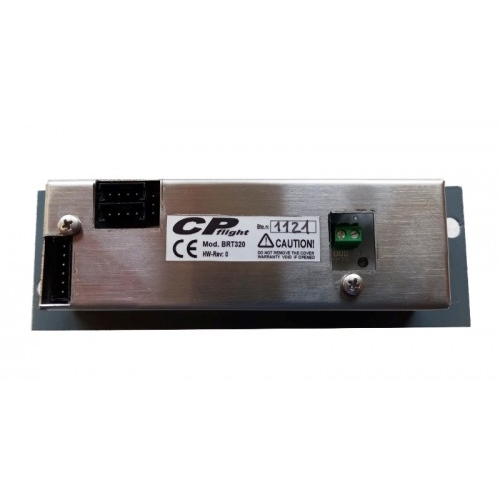

• Steel back cover for electronic circuit protection
• The module is supplied with aluminium fasteners, screws and nuts
• BRT320 is an expansion module and requires FCU320 to operate.
• Compatible with Flight Simulator, Prepar 3D ( all releases ) using Project Magenta A320 or PROSIMA320
• Other compatibility addon will be add time by time following market request

Why choosing us?

Our BRT320 panels is connected directly to the FCU320 in daisy-chain together with the other modules.
The FCU320 takes on charge all the connected modules, dealing the communication between them.
For this reason BRT320 does not require further driver installations, software configurations, with no occupation of USB ports on the pc. Behind the panel the thickness of our BRT320 is besides of 23 mm.
