B737NG FLIGHT CONTROL PANEL

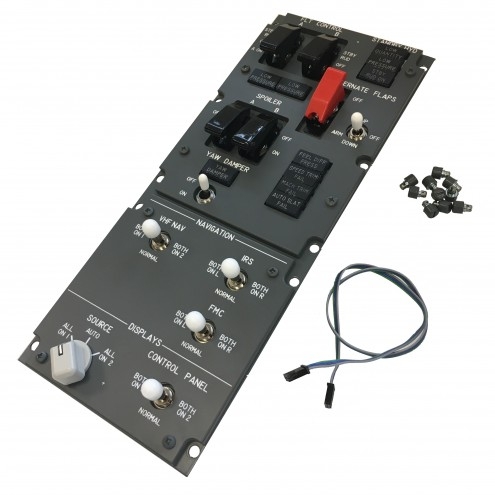

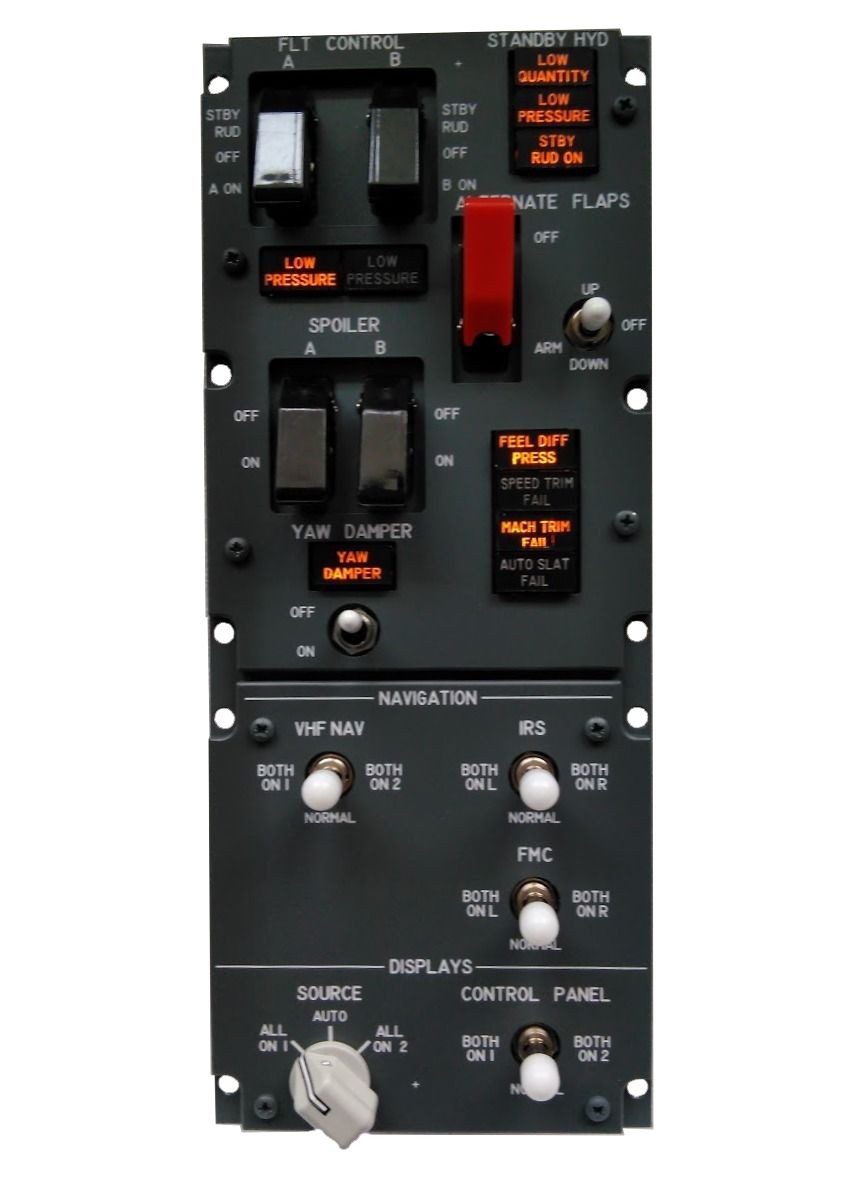

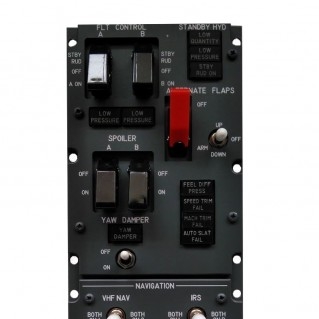

Full Scale replica of the Boeing737 Flight Control Panel and Navigation Panel, look and functionality are reproduced with high details.

• Custom high resolution warm white backlighting frontplate.
• The only overhead hardware with annunciators pushbutton test
• LOW QUANTITY, LOW PRESSURE, STBY RUD ON, FEEL DIFF PRESS, SPEED TRIM FAIL, MACH TRIM FAIL, AUTO SLAT FAIL and YAW DAMPER annunciators
• FLT CONTROL A & B 3 position switches with black guard
• ALTERNATE FLAP switch with red guard
• SPOILER A & B switches with black guard

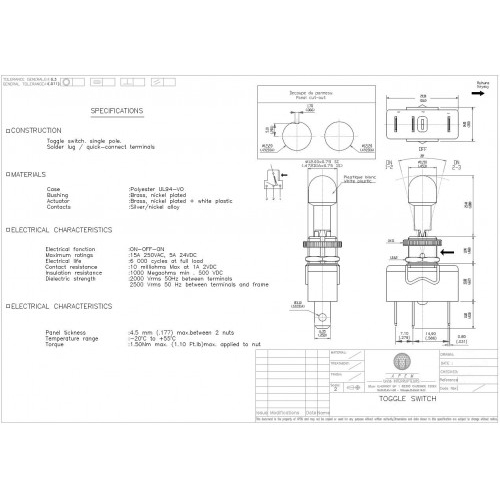

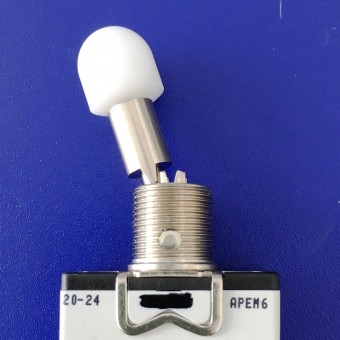

• Original APEM LOCK-LOCK-LOCK switch with white CAP for NAVIGATION section ( VHF NAV, IRS, FMC )
• Original APEM LOCK-LOCK-LOCK switch for DISPLAYS CONTROL PANEL
• Boeing style BACKLIGHTED knob for SOURCE rotary switch
• Yaw damper switch with electromagnetic disengage
• Painted 1/4 Turn Original Fastners ( 10 pieces provided )

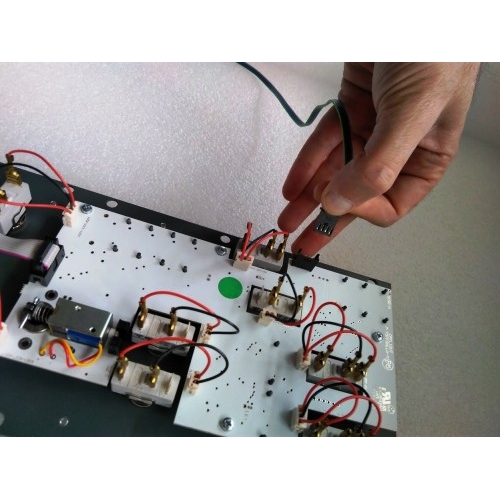

• Provided with a 4 pole cable for daisy chain interface with the main module ( B737 ELECTRICAL PANEL )
• Compatible with Prosim737 V3, Project Magenta, PMDG737NGX, PMDG737NGX series and iFly737
• Logics, operating modes and aircraft way of behaving are managed by the used software ( PROSIM737, Project Magenta, PMDG or iFly).

B737 FLIGHT CONTROL PANEL is intended for CPflight daisy chain connection. Does not require further driver installations, software configurations or any additional power supply.

B737 FLIGHT CONTROL PANEL is an expansion module and require B737 ELECTRICAL PANEL to operate so don't use other computer's input like usb port. The ELECTRICAL PANEL performs the function of “central unit” for all the other modules that make the overhead
